产品名称:贴片大电流磁胶电感
产品咨询热线:0755-89487610
点击这里给我发消息点击这里给我发消息
0

产品详情

FEATURES AND APPLICATION/特性和用途

►Excellent solderability and high heat resistance.

►良好的可焊性和高耐热性

►Suitable for large currents.

►适合大电流

►Is applicable to a wide range of DC-DC converters ideal
for (DVD;DSC;phone,PDA,GPS,CMMB,Digital photo
Frame,telephone,CAR AV equipment and so on.)

►适用于多种DC-DC转换器的理想选择(DVD,DSC,
手机,PDA,GPS,CMMB,数码相框,电话机,CAR
AV等设备。)

►Excellent solderability and high heat resistance.

►良好的可焊性和高耐热性

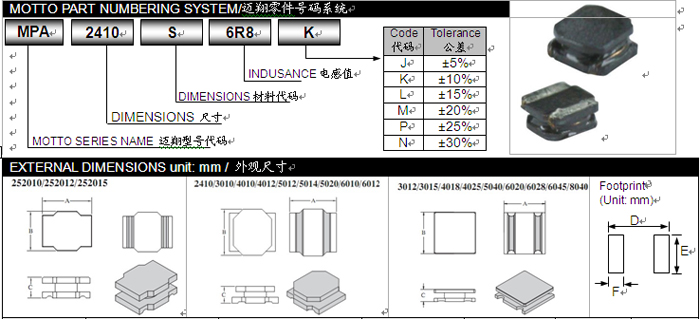

Size

A
(inch)mm

B
(inch)mm

C
(inch)mm

D
(mm)

E
(mm)

F
(mm)

MPA2410

(0.095±0.004)2.4±0.1

(0.095±0.004)2.4±0.1

(0.039)1.0

2.15

2.00

0.70

MPA252010

(0.099±0.004)2.5±0.1

(0.079±0.004)2.0±0.1

(0.039)1.0

2.50

2.00

0.80

MPA252012

(0.099±0.004)2.5±0.1

(0.079±0.004)2.0±0.1

(0.047)1.2

2.50

2.00

0.80

MPA 252015

(0.099±0.004)2.5±0.1

(0.079±0.004)2.0±0.1

(0.059)1.5

2.50

2.00

0.80

MPA3010

(0.118±0.004)3.0±0.1

(0.118±0.004)3.0±0.1

(0.039)1.0

3.00

2.70

0.80

MPA3012

(0.118±0.004)3.0±0.1

(0.118±0.004)3.0±0.1

(0.047)1.2

3.00

2.70

0.80

MPA3015

(0.118±0.004)3.0±0.1

(0.118±0.004)3.0±0.1

(0.059)1.5

3.00

2.70

0.80

MPA4010

(0.157±0.008)4.0±0.2

(0.157±0.008)4.0±0.2

(0.039)1.0

4.55

3.60

1.50

MPA4012

(0.157±0.008)4.0±0.2

(0.157±0.008)4.0±0.2

(0.047)1.2

4.55

3.60

1.50

MPA4018

(0.157±0.008)4.0±0.2

(0.157±0.008)4.0±0.2

(0.071)1.8

4.55

3.60

1.50

MPA4025

(0.157±0.008)4.0±0.2

(0.157±0.008)4.0±0.2

(0.098)2.5

4.55

3.60

1.50

MPA5012

(0.197±0.008)5.0±0.2

(0.197±0.008)5.0±0.2

(0.047)1.2

5.10

4.00

1.50

MPA5014

(0.197±0.008)5.0±0.2

(0.197±0.008)5.0±0.2

(0.055)1.4

5.10

4.00

1.50

MPA5020

(0.197±0.008)5.0±0.2

(0.197±0.008)5.0±0.2

(0.079)2.0

5.10

4.00

1.50

MPA5040

(0.197±0.008)5.0±0.2

(0.197±0.008)5.0±0.2

(0.157)4.0

5.10

4.00

1.50

MPA6010

(0.236±0.008)6.0±0.2

(0.236±0.008)6.0±0.2

(0.039)1.0

6.30

5.70

1.60

MPA6012

(0.236±0.008)6.0±0.2

(0.236±0.008)6.0±0.2

(0.047)1.2

6.30

5.70

1.60

MPA6020

(0.236±0.008)6.0±0.2

(0.236±0.008)6.0±0.2

(0.079)2.0

6.30

5.70

1.60

MPA6028

(0.236±0.008)6.0±0.2

(0.236±0.008)6.0±0.2

(0.110)2.8

6.30

5.70

1.60

MPA6045

(0.236±0.008)6.0±0.2

(0.236±0.008)6.0±0.2

(0.177)4.5

6.30

5.70

1.60

MPA8040

(0.307±0.008)7.8±0.2

(0.315±0.008)8.0±0.2

(0.157)4.0

7.40

7.50

1.80

COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA2410S-R68N

0.68

100

72

2.20

1.57

MPA2410S-1R0N

1.0

100

84

1.80

1.41

MPA2410S-1R5N

1.5

100

132

1.55

1.16

MPA2410S-2R2M

2.2

100

180

1.29

0.97

MPA2410S-3R3M

3.3

100

264

1.00

0.77

MPA2410S-4R7M

4.7

100

348

0.88

0.67

MPA2410S-6R8M

6.8

100

492

0.75

0.57

MPA2410S-100M

10

100

690

0.55

0.45

MPA2410S-150M

15

100

1224

0.47

0.37

MPA2410S-220M

22

100

1764

0.39

0.30

COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA252010S-R47N

0.47

100

46

2.50

2.65

MPA252010S-R68N

0.68

100

62

2.05

2.20

MPA252010S-1R0N

1.0

100

84

1.75

1.90

MPA252010S-1R5N

1.5

100

128

1.45

1.50

MPA252010S-2R2M

2.2

100

190

1.20

1.20

MPA252010S-3R3M

3.3

100

275

0.94

1.00

MPA252010S-4R7M

4.7

100

398

0.80

0.82

MPA252010S-6R8M

6.8

100

532

0.68

0.71

MPA252010S-100M

10

100

854

0.56

0.55

COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA252012S-R47N

0.47

100

56

2.75

2.15

MPA252012S-1R0N

1.0

100

87

2.20

1.70

MPA252012S-1R5N

1.5

100

126

1.80

1.45

MPA252012S-2R2M

2.2

100

154

1.55

1.30

MPA252012S-3R3M

3.3

100

272

1.25

0.98

MPA252012S-4R7M

4.7

100

405

1.05

0.81

MPA252012S-6R8M

6.8

100

612

0.85

0.65

MPA252012S-100M

10

100

756

0.73

0.59

COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA252015S-1R0N

1.0

100

82

1.95

1.75

MPA252015S-1R5N

1.5

100

120

1.75

1.45

MPA252015S-2R2M

2.2

100

160

1.50

1.25

MPA252015S-3R3M

3.3

100

219

1.20

1.05

MPA252015S-4R7M

4.7

100

318

1.00

0.89

MPA252015S-6R8M

6.8

100

480

0.85

0.73

MPA252015S-100M

10

100

588

0.72

0.66

COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA3010S-1R0N

1.0

100

78

1.30

1.40

MPA3010S-1R5N

1.5

100

96

1.20

1.30

MPA3010S-2R2M

2.2

100

114

1.10

1.10

MPA3010S-3R3M

3.3

100

168

0.87

0.94

MPA3010S-4R7M

4.7

100

228

0.75

0.78

MPA3010S-6R8M

6.8

100

360

0.61

0.63

MPA3010S-100M

10

100

540

0.50

0.51

MPA3010S-150M

15

100

888

0.40

0.40

MPA3010S-220M

22

100

1236

0.35

0.35

MPA3010S-330M

33

100

1860

0.26

0.28

MPA3010S-470M

47

100

2460

0.22

0.24

COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA3012S-1R0N

1.0

100

60

1.50

1.49

MPA3012S-1R5N

1.5

100

70

1.36

1.40

MPA3012S-2R2M

2.2

100

90

1.10

1.20

MPA3012S-3R3M

3.3

100

115

0.91

1.05

MPA3012S-4R7M

4.7

100

150

0.77

0.98

MPA3012S-6R8M

6.8

100

216

0.67

0.74

MPA3012S-100M

10

100

339

0.54

0.63

MPA3012S-150M

15

100

540

0.44

0.49

MPA3012S-220M

22

100

756

0.38

0.42

MPA3012S-330M

33

100

1236

0.31

0.33

MPA3012S-470M

47

100

1740

0.25

0.28

COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA3015S-1R0N

1.0

100

36

2.10

2.10

MPA3015S-1R5N

1.5

100

48

1.80

1.82

MPA3015S-2R2M

2.2

100

72

1.48

1.50

MPA3015S-3R3M

3.3

100

96

1.21

1.23

MPA3015S-4R7M

4.7

100

144

1.02

1.04

MPA3015S-6R8M

6.8

100

192

0.87

0.88

MPA3015S-100M

10

100

276

0.70

0.71

MPA3015S-150M

15

100

432

0.56

0.56

MPA3015S-220M

22

100

624

0.47

0.47

MPA3015S-330M

33

100

1008

0.39

0.37

MPA3015S-470M

47

100

1608

0.32

0.30

COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA4010S-1R0N

1.0

100

120

1.80

1.05

MPA4010S-2R2M

2.2

100

180

1.15

0.89

MPA4010S-3R3M

3.3

100

216

1.10

0.82

MPA4010S-4R7M

4.7

100

252

0.90

0.75

MPA4010S-6R8M

6.8

100

360

0.74

0.62

MPA4010S-100M

10

100

456

0.56

0.60

MPA4010S-150M

15

100

612

0.47

0.51

MPA4010S-220M

22

100

1044

0.36

0.40

MPA4010S-330M

33

100

1848

0.28

0.30

MPA4010S-470M

47

100

2172

0.24

0.28

COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA4012S-1R0N

1.0

100

72

2.50

1.50

MPA4012S-2R2M

2.2

100

108

1.65

1.20

MPA4012S-3R3M

3.3

100

156

1.20

0.98

MPA4012S-4R7M

4.7

100

168

1.05

0.96

MPA4012S-6R8M

6.8

100

216

0.90

0.84

MPA4012S-100M

10

100

288

0.74

0.60

MPA4012S-150M

15

100

480

0.56

0.60

MPA4012S-220M

22

100

576

0.51

0.54

MPA4012S-330M

33

100

972

0.40

0.42

MPA4012S-470M

47

100

1200

0.35

0.37

COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA4018S-1R0N

1.0

100

36

4.00

1.83

MPA4018S-1R5N

1.5

100

51

2.90

1.70

MPA4018S-2R2M

2.2

100

72

2.70

1.44

MPA4018S-3R3M

3.3

100

84

2.00

1.23

MPA4018S-4R7M

4.7

100

108

1.70

1.20

MPA4018S-6R8M

6.8

100

132

1.45

1.06

MPA4018S-100M

10

100

216

1.20

0.84

MPA4018S-150M

15

100

300

0.94

0.65

MPA4018S-220M

22

100

432

0.80

0.59

MPA4018S-330M

33

100

636

0.65

0.49

MPA4018S-470M

47

100

780

0.57

0.42

MPA4018S-680M

68

100

1200

0.47

0.32

MPA4018S-101M

100

100

1800

0.40

0.27

MPA4018S-151M

150

100

3000

0.31

0.22

MPA4018S-221M

220

100

4800

0.27

0.17

COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA4025S-1R0N

1.0

100

22

3.10

2.40

MPA4025S-2R2M

2.2

100

37

2.10

2.00

MPA4025S-3R3M

3.3

100

57

1.80

1.70

MPA4025S-4R7M

4.7

100

66

1.40

1.60

MPA4025S-6R8M

6.8

100

78

1.10

1.30

MPA4025S-100M

10

100

115

1.00

1.20

MPA4025S-150M

15

100

132

0.90

1.10

MPA4025S-220M

22

100

198

0.61

0.90

MPA4025S-330M

33

100

240

0.54

0.80

MPA4025S-470M

47

100

360

0.41

0.65

COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA5012S-1R0N

1.0

100

64

4.50

2.30

MPA5012S-1R5N

2.2

100

84

3.80

2.20

MPA5012S-2R2M

3.3

100

102

3.10

2.00

MPA5012S-3R3M

4.7

100

192

2.40

1.45

MPA5012S-4R7M

6.8

100

216

2.20

1.40

MPA5012S-6R8M

10

100

312

1.70

1.10

MPA5012S-100M

15

100

504

1.40

0.85

COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA5014S-1R0N

1.0

100

54

3.80

2.80

MPA5014S-2R2M

2.2

100

65

2.80

2.30

MPA5014S-3R3M

3.3

100

80

2.35

2.10

MPA5014S-4R7M

4.7

100

100

2.05

1.80

COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA5020S-1R0N

1.0

100

25

4.00

3.60

MPA5020S-1R5N

1.5

100

31

3.35

3.20

MPA5020S-2R2M

2.2

100

42

2.90

2.90

MPA5020S-3R3M

3.3

100

58

2.40

2.40

MPA5020S-4R7M

4.7

100

72

2.00

2.00

MPA5020S-6R8M

6.8

100

108

1.60

1.65

MPA5020S-100M

10

100

144

1.30

1.45

MPA5020S-150M

15

100

198

1.10

1.20

MPA5020S-220M

22

100

312

0.90

1.00



COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA5040S-1R5N

1.5

100

24

6.00

3.60

MPA5040S-2R2N

2.2

100

26

4.60

3.50

MPA5040S-3R3M

3.3

100

32

3.80

3.30

MPA5040S-4R7M

4.7

100

35

3.30

3.10

MPA5040S-6R8M

6.8

100

59

2.60

2.30

MPA5040S-100M

10

100

67

2.30

2.10

MPA5040S-150M

15

100

96

2.00

1.80

MPA5040S-220M

22

100

151

1.60

1.40

MPA5040S-330M

33

100

216

1.30

1.20

MPA5040S-470M

47

100

372

1.10

0.90



COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA6010S-1R5N

1.5

100

108

2.40

1.90

MPA6010S-2R2N

2.2

100

132

1.90

1.70

MPA6010S-3R3M

3.3

100

162

1.60

1.50

MPA6010S-4R7M

4.7

100

198

1.30

1.40

MPA6010S-6R8M

6.8

100

264

1.20

1.20

MPA6010S-100M

10

100

324

1.00

1.10

COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA6012S-2R5N

2.5

100

108

2.10

1.73

MPA6012S-4R0N

4.0

100

126

1.80

1.57

MPA6012S-5R3M

5.3

100

150

1.50

1.40

MPA6012S-6R8M

6.8

100

198

1.30

1.18

MPA6012S-100M

10

100

282

1.00

1.00

MPA6012S-150M

15

100

396

0.80

0.79

MPA6012S-220M

22

100

636

0.76

0.63

MPA6012S-330M

33

100

840

0.59

0.53

MPA6012S-470M

47

100

1260

0.52

0.46

MPA6012S-680M

68

100

1620

0.44

0.41

MPA6012S-101M

100

100

2616

0.35

0.32



COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA6020S-R80N

0.8

100

24

5.50

3.80

MPA6020S-1R5N

1.5

100

31

4.00

3.20

MPA6020S-2R2M

2.2

100

41

3.20

2.70

MPA6020S-3R3M

3.3

100

48

2.80

2.60

MPA6020S-4R7M

4.7

100

70

2.40

2.00

MPA6020S-6R8M

6.8

100

102

2.00

1.80

MPA6020S-100M

10

100

150

1.70

1.40

MPA6020S-220M

22

100

348

1.05

0.95



COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA6045S-1R0N

1.0

100

17

8.50

4.20

MPA6045S-1R3N

1.3

100

19

8.00

4.00

MPA6045S-1R8M

1.8

100

22

7.00

3.70

MPA6045S-2R2M

2.2

100

24

6.10

3.60

MPA6045S-3R0M

3.0

100

29

5.00

3.20

MPA6045S-4R7M

4.7

100

38

3.90

2.90

MPA6045S-6R8M

6.8

100

43

3.60

2.60

MPA6045S-100M

10

100

56

3.00

2.50

MPA6045S-150N

15

100

92

2.30

1.90

MPA6045S-220N

22

100

138

1.90

1.50

MPA6045S-330M

33

100

145

1.50

1.40

MPA6045S-470M

47

100

220

1.30

1.10

MPA6045S-680M

68

100

396

1.00

0.90

MPA6045S-101M

100

100

600

0.80

0.70



COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA6028S-R90N

0.9

100

16

6.60

4.60

MPA6028S-1R5N

1.5

100

19

5.00

4.20

MPA6028S-2R2M

2.2

100

24

4.20

3.70

MPA6028S-3R0M

3.0

100

28

3.60

3.40

MPA6028S-4R7M

4.7

100

37

2.70

3.00

MPA6028S-6R0M

6.0

100

48

2.50

2.50

MPA6028S-100M

10

100

78

1.90

1.90

MPA6028S-150M

15

100

114

1.60

1.80

MPA6028S-220N

22

100

162

1.30

1.40

MPA6028S-330N

33

100

264

1.10

1.10

MPA6028S-470M

47

100

300

0.95

0.92

MPA6028S-680M

68

100

504

0.76

0.77

MPA6028S-101M

100

100

720

0.62

0.66



COILMX
Part Number

L(uH)

Test Freq (KHZ)

DCR(mΩ) Max

last (A)

lrms (A)

MPA8040S-R90N

0.9

100

7

11.0

7.80

MPA8040S-1R4N

1.4

100

9

9.00

7.00

MPA8040S-2R2M

2.2

100

13

7.00

5.90

MPA8040S-3R9M

3.9

100

19

5.30

4.90

MPA8040S-4R7M

4.7

100

22

4.70

4.10

MPA8040S-6R8M

6.8

100

30

4.00

3.70

MPA8040S-100M

10

100

41

3.40

3.10

MPA8040S-150M

15

100

60

2.70

2.40

MPA8040S-220N

22

100

79

2.20

2.20

MPA8040S-330N

33

100

120

1.90

1.70

MPA8040S-470M

47

100

180

1.50

1.40

MPA8040S-680M

68

100

276

1.20

1.10

MPA8040S-101M

10

100

348

1.00

1.00

为什么要选择迈翔?

在以往采购大电流电感,一体电感,功率电感的时候,您是否经常遇到这样的情况:
1、供应商偷换物料,以次充好。承认书和样品用的是高等级的品牌物料,但批量生产时却换成了廉价的次等物料,从而使产品质量大打折扣,甚至根本无法使用。
2、供应商私改工艺,承认书和样品是按照客户要求做的,但批量生产的时候却变了,供应商为了降低成本,私自减掉或更改了某些工艺,从而使产品存在严重的质量隐患。
3、交货质量无保证,有很多不良品。很多供应商为了赶交期或节省人工,对成品采取抽测的方法,有的甚至根本不测,直接发货。这样做出来的产品质量就可想而知了。
4、交期一拖再拖,下单的时候明明答应10号可以交货,但到了10号产品还没做出来,根本无法交货。然后在您催货时找各种理由搪塞,推诿责任。

如果您选择迈翔,以下的问题将全部不是问题!

一、物料保证
我们的物料全部选品牌厂家,我们根本就不使用廉价的次等物料(欢迎客户到我公司仓库检查,看一看我们公司用的都是什么等级、什么品牌的物料)。我公司已通过美国UL安规认证(UL认证号E355412),我们选用的原材料供应商也全部通过UL认证。如果客户对物料有特别的指定,我们将严格按照客户的要求购买指定品牌的物料,假如遇到特殊情况需要更换供应商,我们会从同等或更高等级的供应商中选取,并一定会事前征得客户的同意。以次充好的事我们绝不会做!
二、工艺保证
我公司已通过ISO9001质量体系认证,生产过程我们严格按照ISO质量体系标准进行。我们的生产工艺文件严格按照客户承认书制作,我们有严格的生产过程控制程序,保证我们批量生产的产品与提供给客户的样品是一样
三、成品质量保证
我们的产品在生产过程中都要经过严格的三道测试:生产过程中抽测,预防批量质量问题;生产部在生产完成后,会对电感量、圈数、漏感、直流电阻、高压等各项性能指标做全测;质量部在包装之前要对产品主要功能指标和外观全部复检一遍。严格的测试流程控制,确保我们的产品万无一失!
四、交期保证
我公司的行为准则是:承诺我们能做到的,做我们所承诺的,做不到的事情我们不会承诺,承诺的事情我们就一定要做到!我们答应客户的交期我们一定会尽力做到,如遇不可抗力导致无法按时交货的,我们一定会事先通知客户,并想办法尽力弥补。
选择迈翔,就是选择安全、可靠、放心的大电流电感,一体电感,功率电感!

*为必填咨询:产品名称

* 产品名称:
* 公司名称:
* 联系人:
* 联系电话:


如以上没有您需要的资料,请在下面填写具体情况:

在线客服
